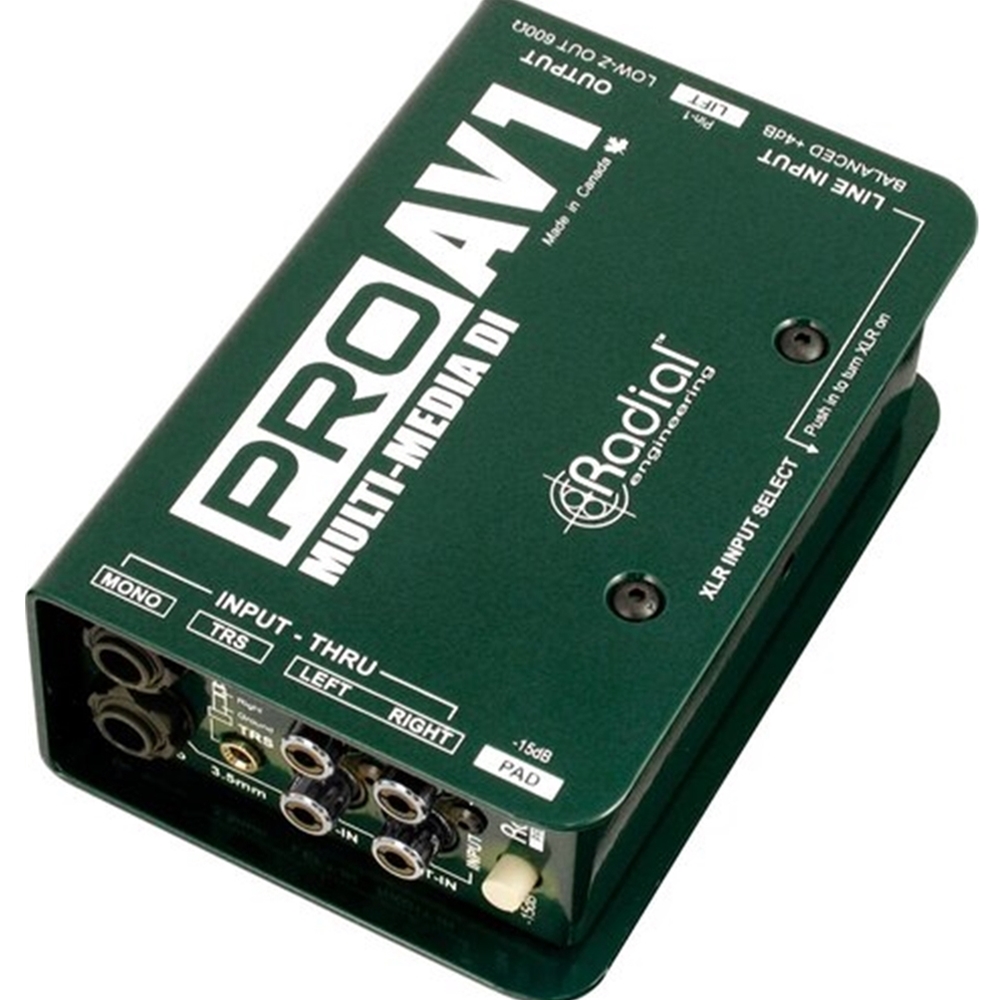

Radial Engineering ProAV1 Multi Media DI

Radial Engineering ProAV1 Multi Media DI
Price: $149.99
SKU:  ^5AR8001112
Manufacturer Part #:  PROAV1
In Stock

Description & Specs


When you have a changing cast of consumer audio and line level signals that need to be summed and sent to one mixer channel, the Radial ProAV1 gives you everything you need in one passive direct box!

Inputs are available via 1/4", RCA, 3.5mm stereo, and line-level XLR connections, meaning you can connect virtually any consumer device to your PA system. Stereo signals are summed into one XLR out, giving you more room to work with on your mixer. RCA thruputs are available for consumer-level recording, while a 1/4" thruput allows this to be used like a usual stage DI box between your electric guitar, your amp, and your mixing board.

Like any good direct box, the ProAV1 offers transformer isolation to help eliminate noise and keep a linear frequency response, a -15 dB pad switch to manage how much signal you're sending through, and a ground lift to nix out buzz from ground loops. All of this fits in Radial's rugged bookend-style chassis.

If you're seeking a versatile multi-media DI box with a mono output, the ProAV1 is a great choice. Order yours today!

Features

  • Versatile direct box for multimedia applications
  • Easy-to-use, ultra-quiet passive design
  • Transformer isolation eliminates hum and buzz
  • Handles huge transients without distortion
  • RCA and 1/4" thru

Specifications

  • Audio Circuit Type: Passive, transformer-based
  • Transformer: Eclipse ET-DB2, 12:1 ratio
  • # of Channels: Single-channel (mono)
  • Frequency Response: 20 Hz - 18.5 kHz (±0.2 dB)
  • Dynamic Range: 128 dB
  • Total Harmonic Distortion: 0.01% from 20 Hz - 20 kHz @ -10 dB
  • Phase Deviation:
    • 1° @ 100 Hz
    • 8° @ 20 Hz
  • Input Connectors: 1/4", RCA, 3.5mm TRS, XLR
    • Input Impedance: 140 kΩ, unbalanced
    • Common Mode Rejection Ratio (CMRR): 100 dB @ 60 Hz
    • Maximum Input: +18 dB @ 20 Hz
  • Output Connector: XLR
    • Output Impedance: 150 Ω, balanced
  • Thru Connectors: 1/4", RCA
  • Features: Input pad, mono sum, ground lift
  • Construction: 14-gauge steel chassis and shell
  • Power: Passive, no power required
  • Conditions: For use in dry locations only, 5-40°C
  • Dimensions (H x W x D): 1.875" x 3.25" x 5"
  • Weight: 1.6 lbs (0.73 kg)
